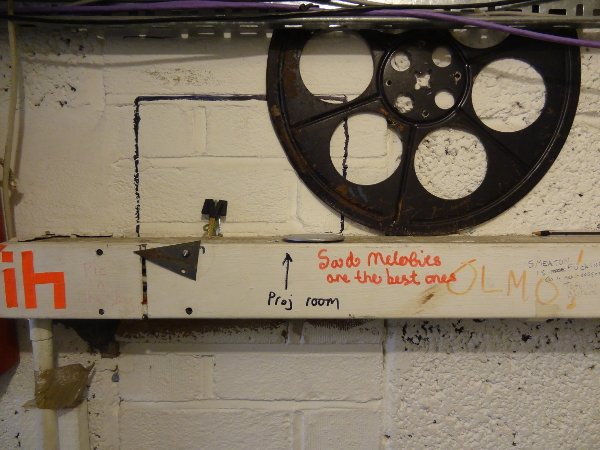

Cube Projection Room

Cube Cinema Tech Spec


AUDITORIUM

107 seats.

Screen measurements in MM

Screen H = 2640, W = 6230 (Scope) (6230 divided by 2640 = 2:35 Cinemascope)
Screen H = 2640, W = 4884 (Flat) (4884 divided by 2640 = 1:85 Flat, Widescreen)
Screen H = 2640, W = 3511 (Academy) (3511 divided by 2640 = 1:33, Academy)

Projection Throw: 14m

Stage 4.6m deep x 7m wide (13.8 ft x 21ft)


SOUND

2000W Bi-Amped PA.

DESK

Soundcraft Impact Si 32 channel digital desk

STAGE

Sommer Groove+ 32/8 multicore

OUTBOARD

Tascam CD writer

MONITORS

4 x HK Audio L5 112X
2 x Yamaha P5000S amplifiers
2 x Turbosound TXD 12M wedges
Ecler APA1000 Switching Power Mosfet Amp

FOH

DBX driverack PA2
Crest Audio FA2401 Power Amp
Amcron Geodyne II

MICS / DIs

3 x SM58
3 x SM57
1 x AKG D112
2 x AKG C2000B
4 x Stageline DIB-100 1-channel passive DIs
About 10 channels of DI via boxes


PROJECTION

AUDITORIUM PICTURE

DCP (2k), 35mm, 16mm, Super 8 (inc sound), BD (upto 1080i), DVD. BetaSP, VHS, S-VHS, mini DV, DVCAM. Any file format within reason. Apple formats are not within reason.

SOUND

Dolby CP750 for all digital formats. CP650 for analogue and historic formats.

Live audio and video streaming from auditorium.


BAR

Technics Decks, CD & Tape Player.


WEB SPACE

This site has extra space for publicity, projects or documentation of events. We have a server here previously made from trash. The url is sparror.cubecinema.com. We have some capacity for live streamed events via OBS.
